MAFTEC™ Blanket

Our core product in sheet form that can be freely cut for use

MAFTECTM Blanket has a structure that is needle-punched from both surface and is composed solely of mullite fibers, containing no binders or additives. Its strong resistance to oxidizing atmospheres makes it suitable for continuous use in high-temperature environments, and even after long-term use, it maintains its original toughness, strength, and soft fiber structure. In addition, the shot (non-fibrous particle) content is extremely low, making it suitable for applications such as thermal insulation.

By leveraging these product characteristics and offering a variety of densities and sizes, we accommodate a wide range of applications in high-temperature environments. In response to increasing global environmental awareness and rising demand driven by stricter automotive industry regulations, we ensure stable supply to customers worldwide through rigorous quality control under an integrated production system.

Basic Information

Main Applications

MLS

Inner lining for various industrial furnaces・Ceramic furnaces・Electric furnaces

MLS-2

Automotive catalytic converters mount mat

Product features

Good dimensional stability and cushioning performance in high-temperature environments
Low shot content achieved through advanced spinning technology
High wind-erosion resistance
Uniform areal weight

Quality Information

Name		MAFTECTM Blanket MLS*		MAFTECTM Blanket MLS-2**
Name		6pcf	8pcf	MAFTECTM Blanket MLS-2**
Max. Use Temperature (℃)		1600		―
Bulk Density (kg/m3)		100	130	150
Chemical composition Al2O3:SiO2		72:28(w/w)
Loss on ignition (%)		≦0.1
True density (g/cm3)		3.1
Average fiber diameter (μm)		5～7
Shot content (%)		0～2
Specific heat (J/kg.K)		1.1×103～1.2×103
Thermal conductivity (W/m•K)	at 600℃	0.15	0.14	―
	at 1000℃	0.29	0.28	―
	at 1200℃	0.41	0.39	―
Heating linear shrinkage (%)	1400℃×24h	≦1		≦1
Heating linear shrinkage (%)	1600℃×24h	1		―

* MLS grade: a product with excellent dimensional stability at high temperatures (general-purpose)

** MLS-2* grade: a product that combines flexibility, resiliency, and cushioning (custom-made: for automotive applications)

Note: The values mentioned above are representative, not guaranteed.

Standard Dimensions

MAFTECTM Blanket MLS grade
Bulk Density (kg/m3)		Thickness (mm)	Width (mm)	Length (m)	Quantity (sheets/box)
100（6pcf）	130（8pcf）	Thickness (mm)	Width (mm)	Length (m)	Quantity (sheets/box)
◯	◯	6	610	3.6	10
◯	◯	6	610	36	1
◯	◯	12.5	610	3.6	6
◯	◯	12.5	610	21.6	1
◯	―	25	610	3.6	3
◯	―	25	610	10.8	1
―	◯	25	610	3.6	3
―	◯	25	610	7.2	1

* The MAFTECTM Blanket MLS-2* grade is a custom-made product. For details, please contact us through the email form.

An example of application development using MAFTECTM Blanket

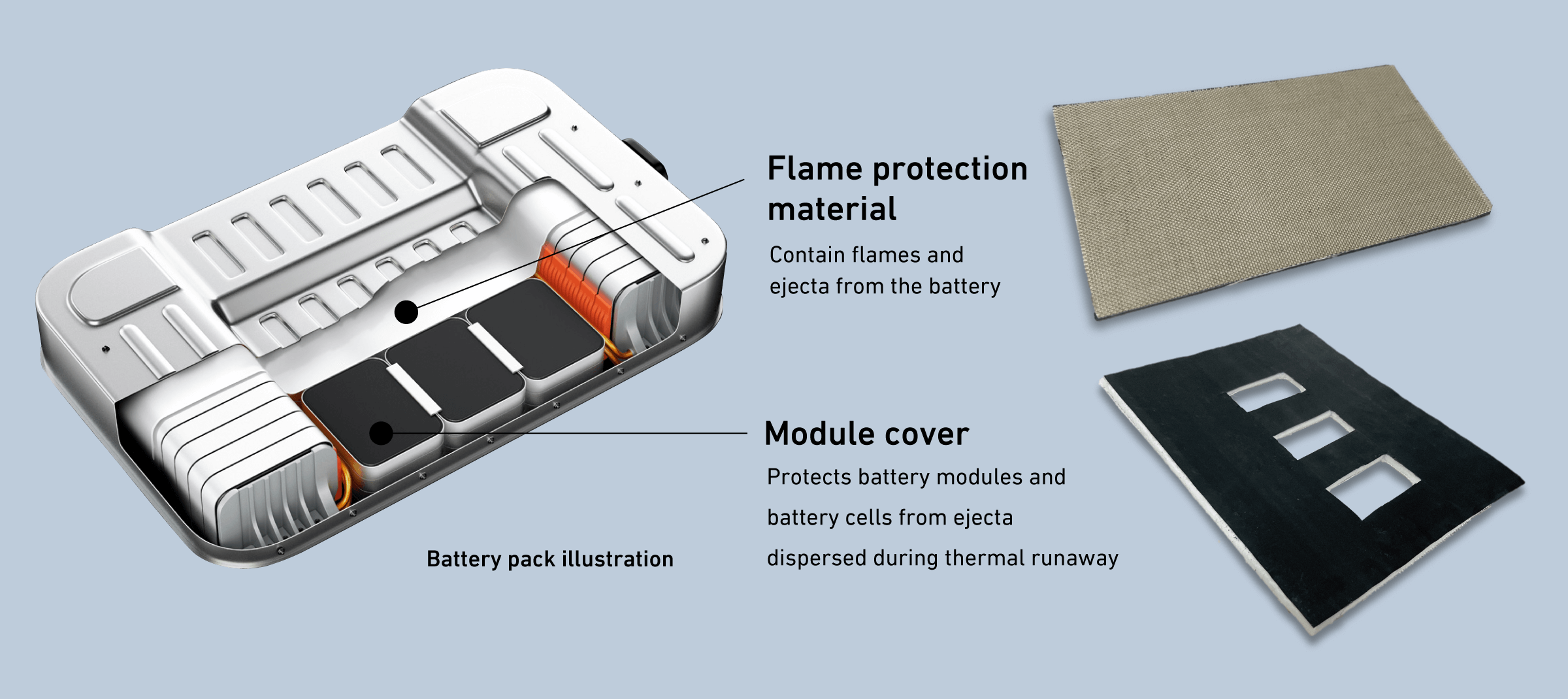

Flame protection material for EVs / Stationary battery fire-protection sheet — **Flame protection material for EVs**
A component that blocks flames and ejecta from the battery pack when the lithium-ion battery installed in the vehicle floor ignites, protecting the cabin space. Compared with materials used for automotive catalytic converters, it is thinner while offering higher flame-shielding performance and particle-impact resistance.
**Stationary battery fire-protection sheet**
A component used to suppress the spread of fire to surrounding units in the event of a fire in stationary (grid-use) batteries. Like the flame-shielding material for EVs, it offers high flame-shielding performance.
